LocoLink

LocoLink is a cable and software used to connect a PCW to a PC, so that documents can be transferred from the PCW (most likely with 3" drives) to the PC (with 5.25" or 3.5" drives).

Hardware

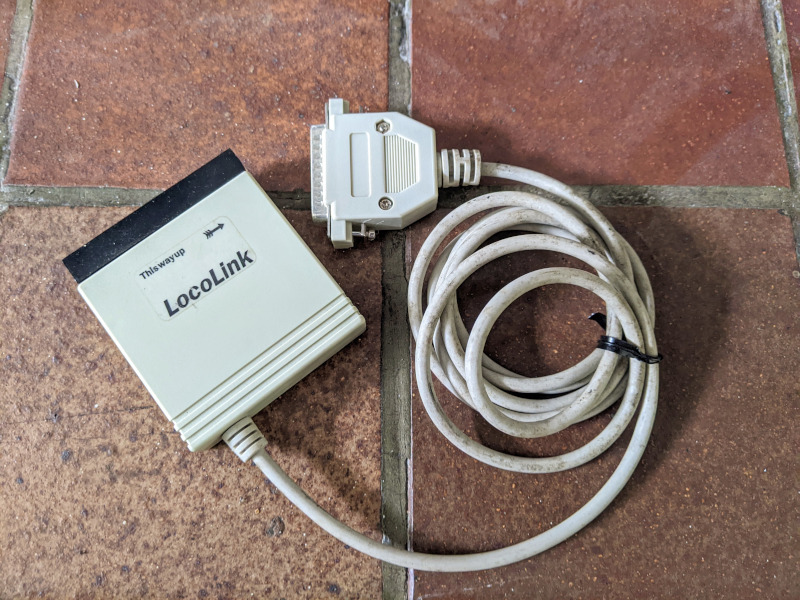

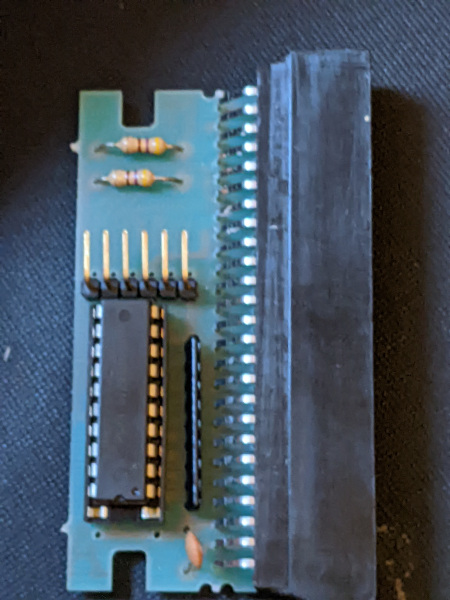

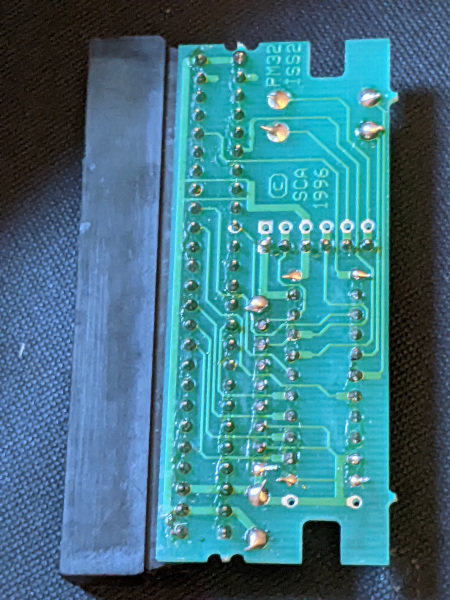

The physical cable has an edge connector at one end, to plug into the PCW's expansion port, and a DB-25 connector at the other to plug into the PC's parallel port. All you need to do is connect the computers together, run the transfer software and the files you require are pushed or pulled across.

At the PCW end, the LocoLink appears at I/O port 0FEh:

Bit	When read	When written
0	Data 0	BUSY
1	Data 1	ACK

At the PC end, the LocoLink appears as a parallel printer; the value written by the PC is latched when the STROBE line is raised and then lowered.

In practice, the values sent from the PCW to the PC are inverted: when the PCW writes 1, the value on the wire is 0 and vice versa. When the PC reads the BUSY signal, it is then inverted again by the PC's chipset. So what you see is something like this:

On the PCW			On the wire		On the PC
PCW writes	Bit 1	Bit 0	BUSY	~ACK	~BUSY	~ACK	PC reads
0	0	0	1	1	0	1	040h
1	0	1	0	1	1	1	0C0h
2	1	0	1	0	0	0	000h
3	1	1	0	0	1	0	080h

LocoLink on other systems

Official LocoLink software only exists for the PC (under PCDOS and Win16) and the PCW. However, with suitable software any system that provides a Centronics port and allows the BUSY and ACK lines to be read would be able to act as the 'PC' end of a LocoLink conversation.

If, instead of the LocoLink cable, you connect two PCs together with a LapLink cable, then one of the PCs could act as the 'PCW' end of a LocoLink conversation. Because of the wiring of the LapLink cable, this would be done by writing to data bits 3 and 4 to set ACK and BUSY at the other end, and reading ERROR and SELECT IN to receive the values written by the other end.

Software

The supplied software had four major versions:

LocoLink 1.x

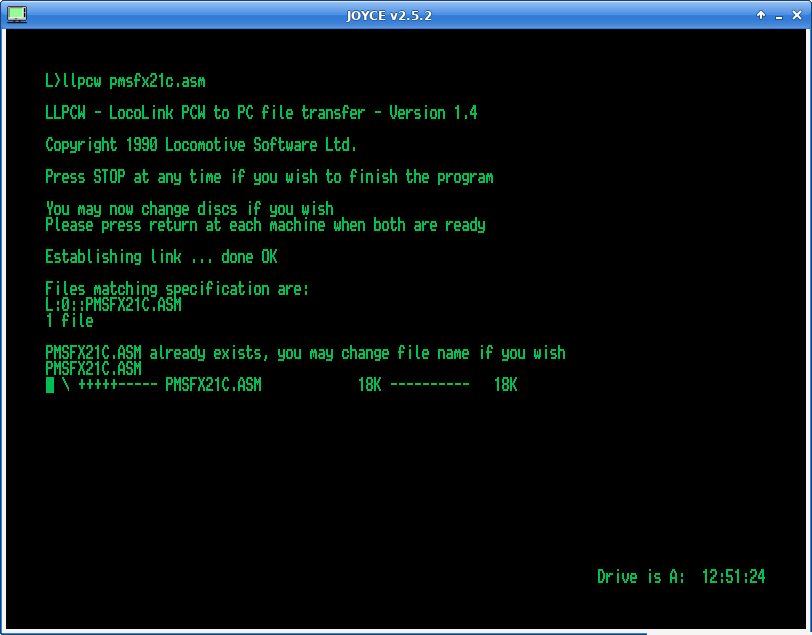

Supplied with LocoScript PC version 1.x. In this version, a server (LLPC.EXE) is run on the PC, and a client (LLPCW.COM) on the PCW.

This version of the software was reviewed in the April 1991 issue of 8000 Plus, on page 12. As the review points out, the transfer is a one-way process; files can be sent from the PCW to the PC, but not brought back in the other direction.

As well as the LocoLink cable, this version also allows the transfer to be made using a serial port, if the PCW has one fitted.

LocoLink 2.x

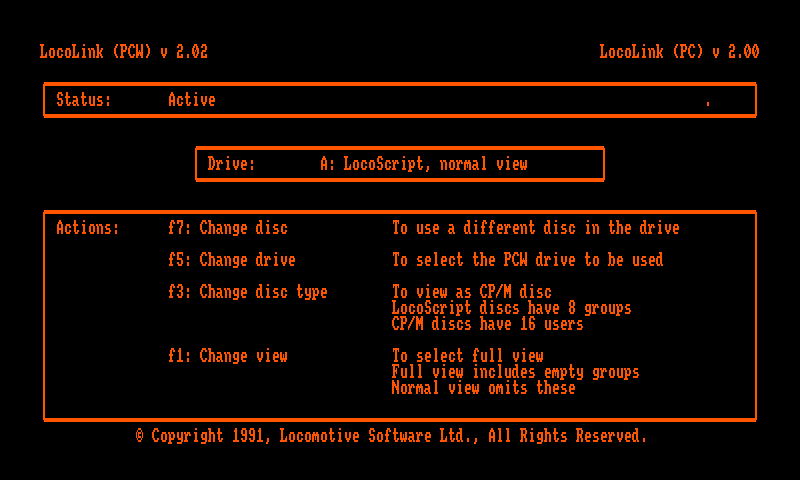

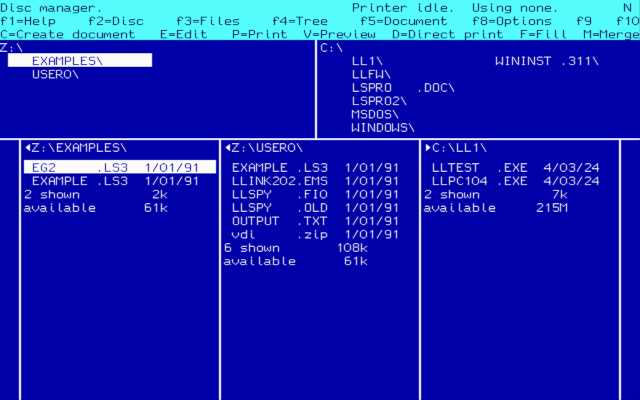

An add-on for LocoScript PC 1.5 and later versions. In this version, the server (LLINK202.EMS) runs on the PCW, and the client is integrated into LocoScript PC. The PCW appears as another drive (usually with the letter Z:) within the Disc Management screen of the PC. Files can be copied both ways, or even edited 'live'.

Locomotive's Script newsletter describes this version here.

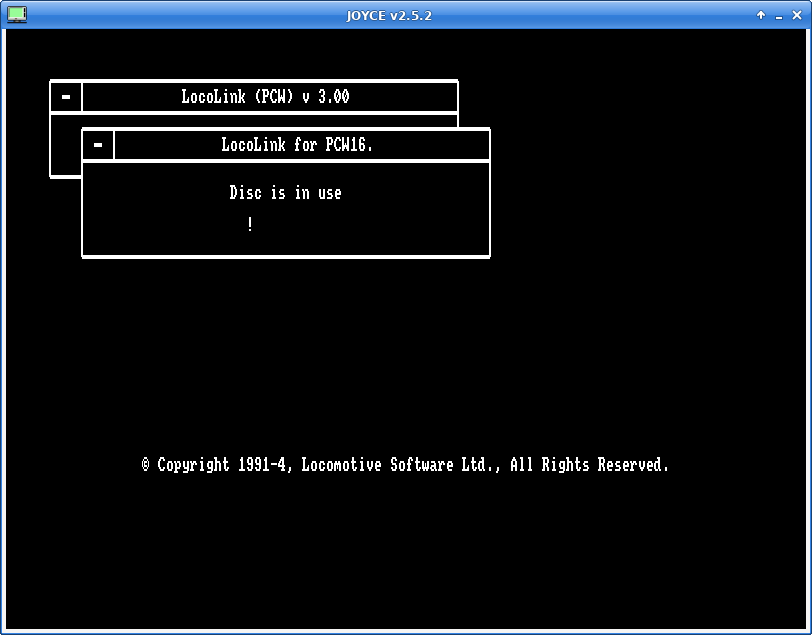

LocoLink 3.x / LocoLink for Windows

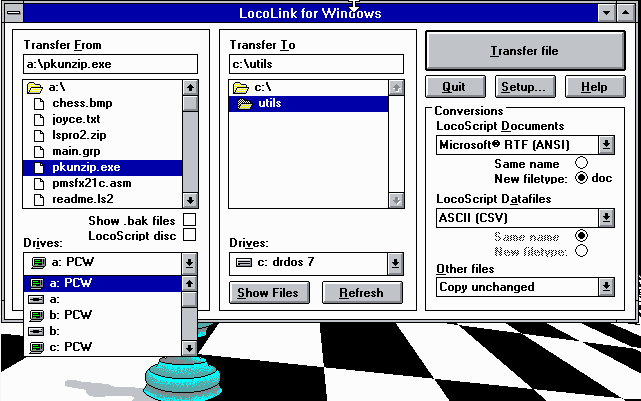

A standalone file converter program for Windows 3.x. Again, the server runs on the PCW. This time the client is a Windows program that can copy files from the PCW to the PC, and optionally convert them from LocoScript format into wordprocessor formats better known on the PC, such as Word, WordPerfect, WordStar or Ami Pro. The PCW appears as one or more extra drives inside the file selector.

Once more, files could only be transferred from the PCW to the PC, not in the opposite direction.

LocoLink 16

For the PcW16. The client is built into the PcW16's system software (Rosanne). The server (which runs on an older PCW) LocoLink 3.x, the same program as used by LocoLink for Windows.

Within Rosanne, if an active LocoLink connection is detected, the "Import" file selector displays "LocoLink A/B" buttons allowing the user to read files from either drive on the PCW. There is no facility to export from the PcW16 to the other PCW, though the Rosanne API does allow files to be written so it would be possible to write a Rosanne program to do this.

Third-party software

Three Inch Software produced a program, PCW Link, which allowed the LocoLink cable to be used to connect between two PCWs provided that one of them was a 9512 or 9512+. The "PC" end of the cable would be plugged into the parallel port on the 9512/9512+, the "PCW" end into the other computer. A 9512 / 9512+ was required because the parallel port interfaces on other PCWs don't provide the necessary access to the ACK signal.

Unlike LocoLink proper, which shares individual files, this software shared drives at a sector level. The drives of the server PCW would appear to the client as K: and L:.

Since this sofware was not written by Locomotive and I don't have a copy to study, I don't know whether it used the same wire protocol as LocoLink proper.

A review and screenshots can be found in PCW Plus, issue 68.

When a LocoLink interface is connected to the PCW9512 parallel port, the following values are read from bits 7 and 6 of the parallel port status register:

PCW writes	9512 reads
0	0C0h
1	080h
2	040h
3	000h

Emulating LocoLink

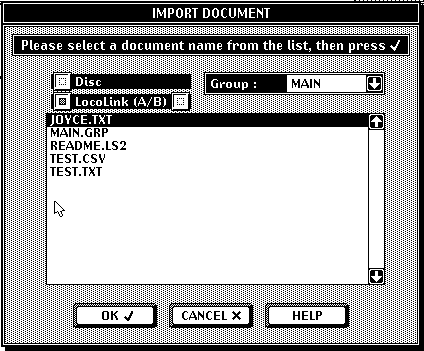

JOYCE can emulate the PCW end of a LocoLink connection. Instead of a LocoLink interface, it would use a LapLink cable to connect the parallel port of the PC running JOYCE to the parallel port of the PC running LocoScript PC / LocoLink for Windows.

Similarly, ANNE can emulate the "PC" end of a LocoLink connection, accessing a real LocoLink cable through the host PC's parallel port.

JOYCE can also emulate LocoLink without a physical cable, sending its data through a TCP/IP port. Using LocoLink 3.00, this would allow a LocoLink connection to be emulated between instances of JOYCE and ANNE running on the same computer.

Wishlist

I'm looking out for a copy of PCW Link (published by Three Inch Software).

In addition, I would be interested to see versions of LocoLink for the PCW other than 1.03, 1.04, 2.02 or 3.00.

Wire Protocol

It's simplest to consider the number written by either end of the link as a number, 0 to 3. When writing from PC to PCW, that's simple: the PC writes n to the parallel port, and the PCW reads n from port 0FEh. Going the other way, the PCW writes n but the value the PC reads has the two bits swapped and the low bit inverted:

PCW writes	PC reads
0	040h
1	0C0h
2	000h
3	080h

In this document, I'll use the values seen and written by the PCW throughout.

Link idle

When the link initially starts, the server sends 2 and the client sends 3. This corresponds to the server listening for the first packet, and the client being ready to transmit.

Sending a packet

In order to send a packet, the transmitting computer checks that the other end is sending the value 2. It may also be 3; if so, send 3 and wait for it to change to 2.

Then:

• Send 0.
• Wait until the value received goes from 2 to 3.
• Send 1.
• Send one byte (packet type)
• Send one byte (payload length, 0-255)
• Send the packet payload, if present.
• Send two bytes: the 16-bit CRC of the packet.
• Wait until the value received goes from 3 to 1.
• Send 3.
• Wait until the value received goes from 1 to 3.
• Send 2.

The procedure to send each byte is:

• Wait until the value received goes from 3 to 1.
• Send 2 or 3, depending whether bit 7 of the byte is 1 or 0.
• Wait until the value received goes from 1 to 3.
• Send 0 or 1, depending whether bit 6 of the byte is 1 or 0.
• Wait until the value received goes from 3 to 1.
• Send 2 or 3, depending whether bit 7 of the byte is 1 or 0.
• ... and so on, until ...
• Send 0 or 1, depending whether bit 0 of the byte is 1 or 0.

Receiving a packet

Receiving is obviously the same protocol, seen from the other end:

• Wait until the value received goes from 3 to 0.
• Send 3.
• Wait until the value received goes from 0 to 1.
• Send 1.
• Receive two bytes (packet type, payload length).
• Receive the payload bytes, based on the length.
• Receive the two-byte CRC.
• Wait until the value received goes from 0 or 1 (bit 0 of the last byte) to 3.
• Send 3.
• Wait until the value received goes from 3 to 2.

The procedure to receive each byte is:

• Wait until the value received becomes 2 or 3. Its low bit gives bit 7 of the incoming byte.
• Send 3.
• Wait until the value received becomes 0 or 1. Its low bit gives bit 6 of the incoming byte.
• Send 1.
• Wait until the value received becomes 2 or 3. Its low bit gives bit 5 of the incoming byte.
• Send 3.
• ... and so on, until ...
• Wait until the value received becomes 0 or 1. Its low bit gives bit 0 of the incoming byte.
• Send 1.

Serial Port

When LocoLink 1 is transmitting over a serial port, it transmits packets in the same form (type, payload length, payload, checksum) at 9600 baud with one stop bit.

Packet types

The first packet is sent by the client, and identifies which version of the protocol they are using. If the server recognises the packet, it will send a suitable response and the link is established.

LocoLink 1.x

Sender	Type	Payload length	Payload
Client	07h	02h	43h	31h
Server	55h	01h	07h

LocoLink 2.x

Sender	Type	Payload length	Payload
Client	0Bh	02h-20h	41h	31h	Client program name (optional)
Server	0C3h	01h-1Fh	0Bh	Server program name (optional)

LocoLink 3.x (for Windows / LocoLink 16)

Sender	Type	Payload length	Payload
Client	5Ah	02h-20h	46h	31h	Client program name (optional)
Server	18h	01h-1Fh	5Ah	Server program name (optional)

Once the connection is established, the packet types sent depend on which version of the protocol is in use.

LocoLink 1.x

The client may send the following packet types to the server:

14h

Hangup: The client disconnects from the server.

21h

Check space for file. Packet contains a 32-bit little-endian file length, followed by ASCIIZ pathname.

2Eh

Create file. Packet contains a 32-bit little-endian file length, followed by ASCIIZ pathname.

3Bh

Append bytes to the currently open file. Packet contains the bytes to append.

48h

Close currently open file. Packet contains the CRC16 of the file as a little-endian word.

6Fh

Create a directory. Packet contains ASCIIZ path name.

7Ch

Check if file / directory exists. First byte of packet payload is the search type (0 for directory, 1 for file) and the remainder is the ASCIIZ pathname.

The server may send the following packet types to the client:

55h

Result. Payload is 2 bytes. The first is the type of the packet being replied to, and the second is an error flag (0 for success, other value for failure).

62h

Unknown packet type received. No payload.

LocoLink 2.x

The client may send the following packet types to the server:

22h

Hangup: The client disconnects from the server.

39h

Make a DOS call. The payload is 1-15 bytes:

Byte	Meaning
0	Function (AH)
1	Subfunction (AL)
2-3	BX
4-5	CX
6-7	DX

In theory, longer versions of this packet containing SI, DI and BP could also be transmitted. Note that the packet may be shorter than you'd expect. For example, MS-DOS function 0Eh takes a drive number in DL. But since LocoLink 2.x only supports one drive, it does not need the drive number and so the transmitted packet only contains one byte of payload, the function number.

The packet for function 4Fh (find next file) comes in two forms: a 'short' one with a single byte of payload:

Byte	Meaning
0	Function (AH)

... and a 'long' one with 15 bytes:

Byte	Meaning
0	Function (AH)
1-16	Bytes 0x07-0x14 of the result from FindFirst

95h

Requested data. Sent by the client following receipt of a type 7Eh packet (see below).

0C3h

Acknowledge data result or echo request.

The server may send the following packet types to the client:

50h

Success. Payload length is 0-8 bytes, giving the register values of AX, BX, CX, DX as little-endian words.

67h

Error. Payload length is a little-endian word, giving the DOS error number (cf INT 21h function 59h)

7Eh

Request data. Used where the corresponding DOS function passes data using a memory buffer. For example, when calling DOS function 3Ch (create file) you pass DX as the pointer to the filename. In LocoLink, the server sends a packet requesting the ASCIIZ data at DX, which the client then provides.

The packet has two bytes payload: the first gives the data source, the second the maximum length. The data source IDs are:

11h

Fixed length, buffer at DX

36h

Fixed length, buffer at DTA

5Bh

Fixed length, buffer at SI

80h

ASCIIZ, buffer at DX

0A5h

ASCIIZ, buffer at SI

0CAh

ASCIIZ, buffer at DI

0EFh

Fixed length, buffer follows last data copied

The last option is used when multiple transfers are necessary for the requested amount of data. For example, attempting to write 300 bytes to a file will cause two requests to be sent: the first of type 11h (data at DX), the second of type 0EFh (continue following last address).

0ACh

Return data to the client. The first byte of the payload is the location code (as above, but only codes 11h, 36h, 5Bh and 0EFh are supported) and the remainder of the packet contains the data to return. The client will acknowledge with a packet of type 0C3h containing a payload of 0ACh.

0DAh

Keep-alive. There is no payload. The client will acknowledge with a packet of type 0C3h containing a single data byte, 0DAh. This is used to stop the client disconnecting with a timeout while the server is awaiting user intervention (for example, if there is a data error reading a disc).

DOS function calls supported by LocoLink PCW 2.x are:

Function number	Meaning	Parameters	Additional transfers	Results if successful
0Dh	Log out drives	none	none	none
0Eh	Select drive	none	none	AL=1 (one drive)
10h	Close disc label	none	none	none
11h	Get disc label	none	Server returns disc label as a DOS extended FCB	none
13h	Delete disc label	none	none	none
16h	Create disc label	none	Client sends disc label as a DOS extended FCB	none
17h	Rename disc label	none	Client sends a DOS extended FCB. Behaves exactly as function 16h except that the second filename (at FCB+11h) rather than the first (at FCB+1) is used.	none
36h	Get free space	none	none	AX = sectors per cluster BX = free clusters CX = bytes per sector DX = total clusters
39h	Create directory	none	Client sends ASCIIZ pathname	Always fails (CP/M can't create more user areas)
3Ah	Remove directory	none	Client sends ASCIIZ pathname	Always fails (CP/M can't remove user areas)
3Bh	Set current directory	none	Client sends ASCIIZ pathname	none
3Ch	Create file	CX=attributes	Client sends ASCIIZ pathname	AX=handle
3Dh	Open file	AL=mode	Client sends ASCIIZ pathname	AX=handle
3Eh	Close file	BX=handle	none	none
3Fh	Read file	BX=handle, CX=count	Server sends data read	AX=count of bytes read
40h	Write file	BX=handle, CX=count	Client sends data to write	AX=count of bytes written
41h	Erase file	none	Client sends ASCIIZ pathname	none
42h	Set file pointer	AL=whence, BX=handle, CXDX=offset	none	DXAX = new file position
43h	Get file attributes	AL=0	Client sends ASCIIZ pathname	CX=attributes
43h	Set file attributes	AL=1, CX=attributes	Client sends ASCIIZ pathname	none
44h	Get device information	AL=0, BX=0, CX=0	None	DX=device flags
47h	Get current directory	none	Server returns current directory	none
4Eh	Find first file	AL=search attribute	Client sends search path. If successful server returns find file data.	none
4Fh	Find next file	none	none	Find file data (bytes 0x14 onward)
		Bytes 0x07-0x14 of last find file data
56h	Rename file	none	Client sends old, then new pathname	none
57h	Get timestamp	AL=0, BX=file handle	none	CX=time, DX=date
57h	Set timestamp	AL=0, BX=file handle, CX=time, DX=date	none	none
5Bh	Create file (if it doesn't exist)	CX=attributes	Client sends ASCIIZ pathname	AX=handle

Notes

1. The LocoLink 2.x server assumes all pathnames are absolute and in upper case. The 'current directory' set by function 3Bh is returned by function 47h, but does not appear to affect the directory used by other functions.
2. For some reason, function 4Fh does not do a separate transfer to return its results, unlike function 4Eh. Instead, the final result packet contains one word (AX) followed by bytes 0x14 onward of the find file data.
3. The server does not support CP/M exact file lengths. If a file of (say) 600 bytes is written, this will be rounded up to a CP/M file of 640 bytes, with the last record padded with zero bytes.
4. In general, this protocol is vulnerable to Heartbleed-style attacks on the client by a buggy or malicious server. The server can respond to any call with packets of type 7Eh (request data) or 0ACh (return data), causing arbitrary ranges of the client's memory to be uploaded or overwritten. Even returning more bytes than the client was expecting can lead to buffer overflows.

LocoLink 3.x (for Windows / LocoLink 16)

The client may send the following packet types to the server:

05h

Echo request. Contains 0-32 bytes of payload, which will be returned in an Acknowledge packet.

18h

Acknowledge data result or echo request.

6Dh

Hangup: The client disconnects from the server.

80h

Make a DOS call. The payload is 1-17 bytes:

Byte	Meaning
0	Function (AH)
1	Subfunction (AL)
2-3	BX
4-5	CX
6-7	DX

In theory, longer versions of this packet containing SI, DI and BP could also be transmitted. As with LocoLink 2.x, the packet may be shorter than you'd expect since irrelevant registers are not included.

The packet for function 4Fh (find next file) comes in two forms: a 'short' one with a single byte of payload:

Byte	Meaning
0	Function (AH)

... and a 'long' one with 17 bytes:

Byte	Meaning
0	Function (AH)
1-16	Bytes 0x06-0x15 of the result from FindFirst

This is because LocoLink for Windows performs depth-first searches of subdirectories. When it encounters a subdirectory, it begins a new FindFirst operation to list the files in that subdirectory; once the files have been enumerated, it then uses the 'long' version of the FindNext call to resume its search of the parent directory at the point it left off. Thus the server must be prepared to handle multiple concurrent searches, and store enough state in bytes 0x06-0x11 of the FindFirst result structure to identify which one is being requested.

0CCh

Requested data. Sent by the client following receipt of a type 0B9h packet (see below).

The server may send the following packet types to the client:

18h

Acknowledge an echo request.

2Bh

Keep-alive. The client will acknowledge with a packet of type 18h containing a single payload byte: 2Bh.

93h

Success. Payload length is 0-8 bytes, giving the register values of AX, BX, CX, DX as little-endian words.

0A6h

Error. Payload length is a little-endian word, giving the DOS error number (cf INT 21h function 59h)

0B9h

Request data.

The packet has two bytes payload: the first gives the data source, the second the maximum length. The data sources used are the same as in LocoLink v2.x:

11h

Fixed length, buffer at DX

36h

Fixed length, buffer at DTA

5Bh

Fixed length, buffer at SI

80h

ASCIIZ, buffer at DX

0A5h

ASCIIZ, buffer at SI

0CAh

ASCIIZ, buffer at DI

0EFh

Fixed length, buffer follows last data copied

0DFh

Return data to the client. The first byte of the payload is the location code (as above, but only codes 11h, 36h, 5Bh and 0EFh are supported) and the remainder of the packet contains the data to return. The client will acknowledge with a packet of type 018h containing a payload of 0EFh.

The LocoLink 3.x server supports the same range of function calls as LocoLink 2.x, though the parameters used differ in various ways. However the known clients (LocoLink for Windows and LocoLink 16) only call a subset of them (listed below). For example, LocoLink 3.x provides functions to get and set the disk label, just like LocoLink 2.x. However LocoLink for Windows and LocoLink 16 never call them, and perhaps in consequence they don't appear to be fully debugged.

Calls made by LocoLink for Windows and LocoLink 16 are:

Function number	Meaning	Parameters	Additional transfers	Results if successful
0Dh	Reset drive	AL=mode (0 for CP/M, 0FFh for LocoScript) DL=drive	none
0Eh	Select drive	DL=drive	none	AL=drive count
3Ch	Create file	CX=attributes	Client sends ASCIIZ pathname	AX=handle
3Dh	Open file	AL=mode	Client sends ASCIIZ pathname	AX=handle
3Eh	Close file	BX=handle	none	none
3Fh	Read file	BX=handle, CX=count	Server sends data read	AX=count of bytes read
40h	Write file (LocoLink 16 only)	BX=handle, CX=count	Client sends data to write	AX=count of bytes written
4Eh	Find first file	AL=search attribute	Client sends search path. If successful server returns find file data.	none
4Fh	Find next file	none	none	Find file data (bytes 0x13 onward)
		Bytes 0x06-0x15 of last find file data

Other calls handled by the LocoLink 3 server include:

Function number	Meaning	Parameters	Additional transfers	Results if successful
10h	Close disc label	none	none	none
11h	Get disc label	none	Server requests first 7 bytes of extended FCB. It should return disc label as a DOS extended FCB. Bug (observed in LocoLink 3.00): The server should request eight bytes, not seven, since it subsequently attempts to parse the eighth byte as a drive number, 1=>A: 2=>B: etc. This means the function always returns error 0x15, drive not ready.	none
13h	Delete disc label	none	Server requests first 7 bytes of extended FCB. Bug: As for function 11h, this should request 8 bytes.	none
16h	Create disc label	none	Client sends disc label as a DOS extended FCB. Bug: Like the other label functions, always fails with error 0x15.	none
17h	Rename disc label	none	Client sends a DOS extended FCB with the new name populated. Bug: Like the other label functions, always fails with error 0x15.	none
36h	Get free space	none	none	AX = sectors per cluster BX = free clusters CX = bytes per sector DX = total clusters
39h	Create directory	none	Client sends ASCIIZ pathname	Always fails (CP/M can't create more user areas)
3Ah	Remove directory	none	Client sends ASCIIZ pathname	Always fails (CP/M can't remove user areas)
3Bh	Set current directory	none	Client sends ASCIIZ pathname	none
41h	Erase file	none	Client sends ASCIIZ pathname	none
42h	Set file pointer	AL=whence, BX=handle, CXDX=offset	none	DXAX = new file position
43h	Get file attributes	AL=0	Client sends ASCIIZ pathname	CX=attributes
43h	Set file attributes	AL=1, CX=attributes	Client sends ASCIIZ pathname	none
44h	Get device information	AL=0, BX=0, CX=0	None	DX=device flags
47h	Get current directory	none	Server returns current directory	none
56h	Rename file	none	Client sends old, then new pathname	none
57h	Get timestamp	AL=0, BX=file handle	none	CX=time, DX=date
57h	Set timestamp	AL=0, BX=file handle, CX=time, DX=date	none	none
5Bh	Create file (if it doesn't exist)	CX=attributes	Client sends ASCIIZ pathname	AX=handle
68h	Flush file	BX=file handle	none	none

Notes

1. Unlike in LocoLink 2.x, function 11h (get disk label) takes a search FCB specifying the drive (though due to bugs this doesn't actually work).
2. As with LocoLink 2.x, the 'current directory' set by function 3Bh is returned by function 47h, but does not appear to affect the directory used by other functions.
3. Likewise, function 4Fh returns its result in the final result packet rather than as a separate transfer.

---

John Elliott 2024-03-02
